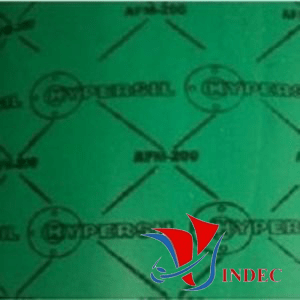

Non Asbestos Gasket Jointing Sheets: CHARMINAR HYPERSIL HNA 200
- MATERIAL : Made from Aramid fibre, Mineral fibre & Inorganic bounded with Synthetic NBR Elastomers.
- DENSITY : 1.70 - 2.00 Gm/cm3
- COLORS : Green (Other color on request)
- OPERATING CONDITION:
+ Maximum Peak Temp. : 400°C
+ Maximum pressure : 100 BAR
+ Maximum Temperature : 250°C
- THICKNESS: 0,25mm, 0,5mm, 1mm, 1,5mm, 2mm, 3mm, 4mm, 5mm, 6mm
- DIMENSION OF SHEETS (mm) : 1500 x 1500, 1500 x 3100, 1500 x 1000, 1500 x 2000, 1270 x 1270, 1270 x 3810, 3000 x 3000
- APPLICATIONS: Suitable for high performance, Oil resistance gasket material with excellent thermal, chemical & mechanical properties. This material is also recommended for automotive industry.
- MODEL : HYPERSIL HNA 200
