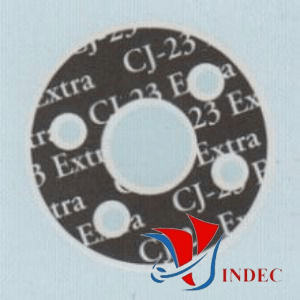

CHARMINAR CJ - 23 Extra : COMPRESSED ASBESTOS FIBER JOINTING SHEET
- MATERIAL TYPE : Made from Chrysotile Asbestos Fiber , Natural Rubber & Butadiene Rubber
- SURFACE FINISH : Red, Grey, Graphited (OTHER COLORS ON REQUEST)
- DENSITY (Test Method : IS:2712/1998) : 1.70 - 2.20 G/cm3
- TENSILE STRENGTH : (Test Method : IS:2712/1998) : > 12.8 Mpa
- OPERATING CONDITION
+ Maximum pressure : 80 Bar
+ Maximum Temperature : 450°C
+ The following Information Applies to material Thickness 1.5mm.
- SPECIFICATION COMPLIANCE : IS: 2712 / 1998 GRADE W / 2
- THICKNESS: 0,25mm, 0,5mm, 0.8mm, 1mm, 1,5mm, 2mm, 3mm, 4mm, 5mm, 6mm
- DIMENSION OF SHEETS (mm) : 1500 x 1500, 1500 x 3100, 1500 x 1000, 1500 x 2000, 1270 x 1270, 1270 x 3810, 3000 x 3000
- APPLICATIONS: To seal off steam, air, water, Natural gas, saline solutions, Alkalies, Amonia & also suitable for oils & fuels & serval other Non-Aggressive media under medium stress conditions.
- MODEL: CJ - 23 Extra
