FEROLITE FMP 500M

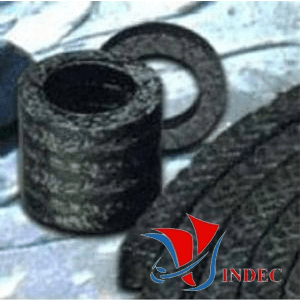

FEROLITE FMP 500M - Expanded Graphite jacketed with Inconel wire Packing

Service Media & Conditions :

- Used for Superheated Steam, Hydrocarbons, Non Oxidising Liquids & Gases, Hot Ash Dyes & Chemicals, Fuel Oil & Lub oil etc. Corrosion inhibitor for moving parts

Technical Data

- Type of Fibre : High purity Graphite ( 99.5 - 99.9%) + S.S. Wire /Inconel Wire

- Carrier Fibre :

- Type of Core : Graphite

- Metal Insertion/Jacketing: Inconel Wire / Chrome Steel (S.S.) wire

- Application Limit: -240 °C to 650 °C

- Decomposition : 650 °C

- Operating Pressure (Max.) Rotating: 30 Bar

- Operating Pressure (Max.) Oscillating: 150 Bar

- Max Operating Pressure : 350 Bar

- Temperature of Carrier Fibre :

- pH : 0 - 14

- Density: 1.1 (g/cm³)

- Size Range : Square form 6 x 6 to 50 x 50 mm

- Origin: India

- Brand: FEROLITE

- Distributor: VINDEC

Applications:

- Typical Applications : Valves

Certificate:

-  API STANDARD 589 6 INCH

- API STANDARD 607 4 INCH

Product Approval :

- Fire Test (API Standard 589, 2nd Edition in 6 Inch Class 300 Gate Valve)

- Fire Test (API 607 Rev.4 in 4 inch Class 300 Gate Valve)

Product Versions:

- With metal wire Insertion or Jacketing (FMP 500M) Impregnated with Special Lubricants - To reduce stem friction & corrosion inhibitor.
