FEROLITE FMP 502

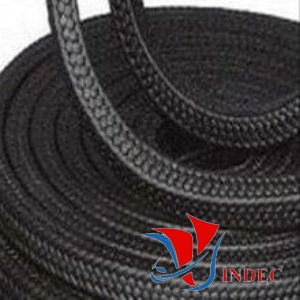

FEROLITE FMP 502 - PTFE Graphite Filament Packing

Service Media & Conditions :

- Used for Rotary Pumps, Mixers & Low pressure Valves for Acids, Chemicals,Caustics,Concentrate Acids,Boilerfeedwater,Fuel & Lub Oil.

Technical Data

- Type of Fibre : Graphitised PTFE filament ( GFO)

- Carrier Fibre :

- Type of Core : filament Yarn PTFE

- Metal Insertion/Jacketing:

- Application Limit: -240 °C to 280 °C

- Decomposition : 280 °C

- Operating Pressure (Max.) Rotating: 20 Bar

- Operating Pressure (Max.) Oscillating: 150 Bar

- Max Operating Pressure : 250 Bar

- Temperature of Carrier Fibre :

- pH : 0 - 14

- Density: 1.5 (g/cm³)

- Size Range : Square form 6 x 6 to 40 x 40 mm

- Origin: India

- Brand: FEROLITE

- Distributor: VINDEC

Applications:

- Typical Applications : Valves, Pumps, Mixers, Agitators & Washeries
