FEROLITE FMP 501

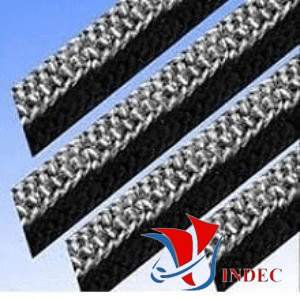

FEROLITE FMP 501 - Carbon Filament Gland Packing

Service Media & Conditions :

- Used for High Speed, High emperature Pressure applications in sealing Boiler Feed Pumps, Super heated Steam, Chemically Inert to most media, not used for Acids & Oxidising Media.

Technical Data

- Type of Fibre : Carbon filament Yarn

- Carrier Fibre :

- Type of Core : Graphite

- Metal Insertion/Jacketing:

- Application Limit: -200 °C to 600 °C

- Decomposition : 600 °C

- Operating Pressure (Max.) Rotating: 35 Bar

- Operating Pressure (Max.) Oscillating: 100 Bar

- Max Operating Pressure : 350 Bar

- Temperature of Carrier Fibre :

- pH : 0 - 14

- Density: 1.0 -1.1 (g/cm³)

- Size Range : Square form 6 x 6 to 40 x 40 mm

- Origin: India

- Brand: FEROLITE

- Distributor: VINDEC

Applications:

- Valves, Boiler Feed Pumps

Product versions:

- With metal wire insertion-S.S.(FMP 501M) Impregnated with PTFE or Graphite -- To reduce stem friction & corrosion inhibitor.
