FEROLITE NAM 37

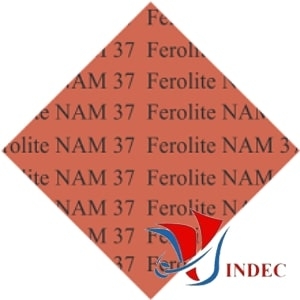

Ferolite NAM 37 - Non Asbestos Gasket Jointing Sheet

Description

- Material Composition (Type of fibres): Aramid Fiber, Mineral Fibre, and Binders with NBR rubber.

Technical Data

- Density: 1.70 – 2.00 (g/cm³)

- Max.Peak Temp: +300°C

- Max. Continuous Temp: +220°C

- Max.Continuous Temp.with steam: +160°C

- Max. Operating Pressure: 80 bar (Kgf/cm2)

- Size: 1500 x 1500mm, 1500 x 2450mm, 3000 x 3000mm

- Thickness: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0mm

- Origin: India

- Brand: FEROLITE

- Distributor: VINDEC

Applications:

- Suitable for water/oil resistant gasket material for light to medium loading. Suitable for low operating pressure, e.g. transformers, compressors and also used for easily deformable components with low surface pressure like valve covers and pans in internal combustion engines.
