FEROLTE NAM 30Y

Contact

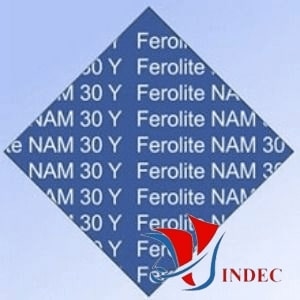

Non Asbestos Gasket Sheet NAM 30Y

Material: Aramid, mineral, NBR rubber.

P. Max: 100 kg

T. Max: 400 °C

Applications: medium to higher loading, water and gases, oils & fuels

Ferolite NAM 30Y - Non Asbestos Gasket Jointing Sheet

Description

- Material Composition (Type of fibres): Aramid Fiber, Mineral Fibre, and Binders with NBR rubber.

Technical Data

- Density: 1.70 - 2.00 (g/cm³)

- Max.Peak Temp: +400°C

- Max. Continuous Temp: +250°C

- Max.Continuous Temp.with steam: +220°C

- Max. Operating Pressure: 100 bar (Kgf/cm2)

- Size: 1500 x 1500mm, 1500 x 2450mm, 3000 x 3000mm

- Thickness: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0mm

- Origin: India

- Certificate: Certificate TA- Luft 30Y

- Brand: FEROLITE

- Distributor: VINDEC

Applications:

- Suitable for oil resistant gasket material for medium to higher loading, good resistance to water and gases, oils & fuels. A standard sealing material used in compressors, pipelines, transmission, gas meters and internal combustion engines.
