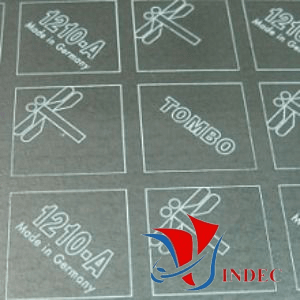

NON ASBESTOS JOINTING SHEET TOMBO T#1210-A
DESCRIPTION
- This type is recommended in the case where the strength of TOMBO No.1215-A is insufficient, or when there is a limitation imposed by the specifications.
- This gasket can be used for stainless steel flange since leachable halogens are little.
TECHNICAL DATA
- Material: Graphite
- Density:
- Tensile Strength:
- Max.Peak Temperature: +800 °C
- Max. Continuous Temp (Oxide atmosphere): - 240～400 °C
- Max. Temperature (Non-oxide atmosphere): - 240 to 800 °C
- Max. Operating Pressure: 5,2Mpa
- Colour: Black
- Brand: NICHIAS TOMBO
- Import: VINDEC
DIMENSION
- Thickness: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0mm
- Size: 1270 x 1270 mm (1S), 1270 x 3810mm (3S), 2540 x 3810mm (6S)
APPLICATIONS
- Gaskets for various types of piping flanges and valves, equipment, etc.
CERTIFICATE
- Asbestos free test report-SGS, API 6FA Fire Safe, BAM.
