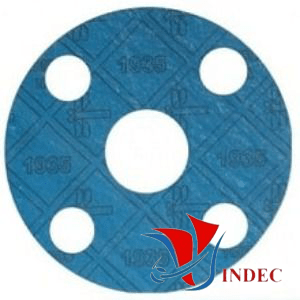

NON ASBESTOS JOINTING SHEET TOMBO T1935

DESCRIPTION

- CLINSIL TOMBO No. 1935 : Specially blended rubber, aramid fibers, inorganic filler

- This gasket has excellent heat resistance and steam resistance, making it suitable for use in a steam line.

- This gasket has excellent heat resistance and steam resistance, making it suitable for use in a steam line.

TECHNICAL DATA

- Material: fibres, NBR

- Density: 1,8 g/cm3

- Tensile Strength: 8 Mpa

- Max.Peak Temperature: +250 °C

- Max. Continuous Temp: -29 to 120 độ C

- Max.Continuous Temperature with steam: + 120 °C

- Max. Operating Pressure: 20 bar (Kgf/cm2)

- Colour: Brown

- Brand: NICHIAS TOMBO

- Import: VINDEC

DIMENSION

- Thickness: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0mm

- Size: 1270 x 1270 mm (1S), 1270 x 3810mm (3S), 2540 x 3810mm (6S)

- TOMBO - NA 1935: 1270mm x 1270mm x 0.5mm = 1,41 Kg/sheet
- TOMBO - NA  1935: 1270mm x 1270mm x 1mm = 2,82 Kg/sheet
- TOMBO - NA  1935: 1270mm x 1270mm x 1.5mm = 4,32 Kg/sheet
- TOMBO - NA  1935: 1270mm x 1270mm x 2mm = 5,65 Kg/sheet
- TOMBO - NA  1935: 1270mm x 1270mm x 3mm = 8,47 Kg/sheet

APPLICATIONS

- Gaskets for various types of piping flanges and valves, equipment, etc.

- Water, Steam, Hot water, Brine,Seawater, Petroleum hydrocarbon, Alcohol, Animal and mineral oil, Thermal oil, Weak acid, Weak alkalis, Saline, Air, Exhaust gas etc.

- Combustion-supporting fluid (e.g. pure oxygen, etc.), Strong acids, Strong alkali, Aromatic hydrocarbons (benzene, toluene, xylene, etc) / organic solvents / thermal oils, Toxic gas etc.

- Petrochemical plants, Chemical, Steel plants, Thermal power plants, Paper mills, Air conditioning and sanitation equipment, Industrial etc.

CERTIFICATE

- Asbestos freeJIS R3453-2001, JIS B2404-1999, JPI-7S-4-1998, JPI-7S-16-1998, ASME B16.21-1992
