TOMBO 1995 Gasket Sheet

NON ASBESTOS JOINTING SHEET TOMBO T1995

DESCRIPTION

NA 1995: Inorganic filler is added to inorganic fibers and aramid fibers; then oil-resistant synthetic rubber is added as binder to form brown NA (non-asbestos) joint sheets which contain absolutely no asbestos.

This gasket can be used for stainless steel flange since leachable halogens are little.

TECHNICAL DATA

Material: aramid fibres, inorganic fibres, NBR

Density: 1,84 g/cm3

Tensile Strength: 24.1 N/mm2

Max.Peak Temperature: +460 °C

Max. Continuous Temp: -170 ºC to 183 ºC

Max.Continuous Temperature with steam: + 150 °C

Max. Operating Pressure: 100 bar (Kgf/cm2)

Colour: Brown

Brand: NICHIAS TOMBO

Import: VINDEC

DIMENSION

Thickness: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0mm

Size: 1270 x 1270 mm (1S), 1270 x 3810mm (3S), 2540 x 3810mm (6S)

APPLICATIONS

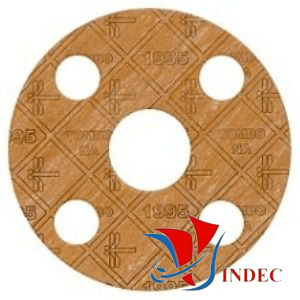

Gaskets for various types of piping flanges and valves, equipment, etc.

Compressed fiber joint sheet is a gasket made of a uniform mixture of fibrous material, filler, rubber and chemicals which is hot rolled by calendering to obtain smooth sheets. The sheets are processed to the required shapes and dimensions for applications in equipment, etc., in a wide range of industries.

CERTIFICATE

Asbestos free test report-SGS, API 6FA Fire Safe, BAM.
